San Francisco Crime Analysis in Physical and Social Environment

spatial
analysis
Author

Tianxiao Chen

Published

April 25, 2023

Environment Setting

Preparation for data process

Code
# Data manipulation libraries
import os
import pandas as pd
import numpy as np

# Visualization
import matplotlib as mpl
import matplotlib.pyplot as plt
import seaborn as sns

# Timer
from tqdm import tqdm, tqdm_notebook

# Regression
from sklearn.linear_model import LinearRegression
from sklearn.tree import DecisionTreeRegressor
from sklearn.ensemble import RandomForestRegressor
from sklearn.ensemble import AdaBoostRegressor
from sklearn.ensemble import GradientBoostingRegressor
from xgboost import XGBRegressor
from sklearn.neural_network import MLPRegressor
from sklearn.neighbors import KNeighborsRegressor

# Model support functions
from sklearn import model_selection
from sklearn.model_selection import train_test_split
from sklearn.preprocessing import PolynomialFeatures
from sklearn.model_selection import cross_val_score
from sklearn.model_selection import GridSearchCV
from scipy.stats import uniform
from sklearn.preprocessing import StandardScaler
from pprint import pprint
from sklearn.inspection import permutation_importance
from sklearn.metrics import mean_squared_error, mean_absolute_error, r2_score

# Geo-related libraries
import geopandas as gpd
import folium
from folium.plugins import HeatMap
import geopy
from geopy.geocoders import Nominatim
from geopy.extra.rate_limiter import RateLimiter
import contextily as ctx
import geofeather
from geopandas import GeoDataFrame
from shapely.geometry import Point
from shapely import wkt
from shapely.geometry import Point, MultiPoint
from shapely.ops import nearest_points
from shapely import wkt

import osmnx
Code
from pydrive.auth import GoogleAuth
from pydrive.drive import GoogleDrive
from google.colab import auth
from oauth2client.client import GoogleCredentials

auth.authenticate_user()
gauth = GoogleAuth()
gauth.credentials = GoogleCredentials.get_application_default()
drive = GoogleDrive(gauth)
Code
#https://drive.google.com/file/d/1HJBU_-Yg_ylAzab8v11l1wcYEwBhO41-/view?usp=share_link
id = "1HJBU_-Yg_ylAzab8v11l1wcYEwBhO41-"
file = drive.CreateFile({'id':id})
file.GetContentFile('Police_Department_Incident_Reports__2018_to_Present.csv')

Data brief review

Code
#load crime data
crime_df = pd.read_csv('Police_Department_Incident_Reports__2018_to_Present.csv')
crime_df.head()
Incident Datetime Incident Date Incident Time Incident Year Incident Day of Week Report Datetime Row ID Incident ID Incident Number CAD Number ... Longitude Point Neighborhoods ESNCAG - Boundary File Central Market/Tenderloin Boundary Polygon - Updated Civic Center Harm Reduction Project Boundary HSOC Zones as of 2018-06-05 Invest In Neighborhoods (IIN) Areas Current Supervisor Districts Current Police Districts
0 2023/03/13 11:41:00 PM 2023/03/13 23:41 2023 Monday 2023/03/13 11:41:00 PM 125373607041 1253736 230167874 NaN ... NaN NaN NaN NaN NaN NaN NaN NaN NaN NaN
1 2023/03/01 05:02:00 AM 2023/03/01 05:02 2023 Wednesday 2023/03/11 03:40:00 PM 125379506374 1253795 236046151 NaN ... NaN NaN NaN NaN NaN NaN NaN NaN NaN NaN
2 2023/03/13 01:16:00 PM 2023/03/13 13:16 2023 Monday 2023/03/13 01:17:00 PM 125357107041 1253571 220343896 NaN ... NaN NaN NaN NaN NaN NaN NaN NaN NaN NaN
3 2023/03/13 10:59:00 AM 2023/03/13 10:59 2023 Monday 2023/03/13 11:00:00 AM 125355107041 1253551 230174885 NaN ... NaN NaN NaN NaN NaN NaN NaN NaN NaN NaN
4 2023/03/14 06:44:00 PM 2023/03/14 18:44 2023 Tuesday 2023/03/14 06:45:00 PM 125402407041 1254024 230176728 NaN ... NaN NaN NaN NaN NaN NaN NaN NaN NaN NaN

5 rows × 35 columns

Code
crime_df.info()
<class 'pandas.core.frame.DataFrame'>
RangeIndex: 716680 entries, 0 to 716679
Data columns (total 35 columns):
 #   Column                                                Non-Null Count   Dtype
---  ------                                                --------------   -----
 0   Incident Datetime                                     716680 non-null  object
 1   Incident Date                                         716680 non-null  object
 2   Incident Time                                         716680 non-null  object
 3   Incident Year                                         716680 non-null  int64
 4   Incident Day of Week                                  716680 non-null  object
 5   Report Datetime                                       716680 non-null  object
 6   Row ID                                                716680 non-null  int64
 7   Incident ID                                           716680 non-null  int64
 8   Incident Number                                       716680 non-null  int64
 9   CAD Number                                            555602 non-null  float64
 10  Report Type Code                                      716680 non-null  object
 11  Report Type Description                               716680 non-null  object
 12  Filed Online                                          144690 non-null  object
 13  Incident Code                                         716680 non-null  int64
 14  Incident Category                                     716064 non-null  object
 15  Incident Subcategory                                  716064 non-null  object
 16  Incident Description                                  716680 non-null  object
 17  Resolution                                            716680 non-null  object
 18  Intersection                                          678513 non-null  object
 19  CNN                                                   678513 non-null  float64
 20  Police District                                       716680 non-null  object
 21  Analysis Neighborhood                                 678381 non-null  object
 22  Supervisor District                                   678138 non-null  float64
 23  Supervisor District 2012                              678393 non-null  float64
 24  Latitude                                              678513 non-null  float64
 25  Longitude                                             678513 non-null  float64
 26  Point                                                 678513 non-null  object
 27  Neighborhoods                                         664168 non-null  float64
 28  ESNCAG - Boundary File                                7761 non-null    float64
 29  Central Market/Tenderloin Boundary Polygon - Updated  92127 non-null   float64
 30  Civic Center Harm Reduction Project Boundary          91531 non-null   float64
 31  HSOC Zones as of 2018-06-05                           149426 non-null  float64
 32  Invest In Neighborhoods (IIN) Areas                   0 non-null       float64
 33  Current Supervisor Districts                          678393 non-null  float64
 34  Current Police Districts                              677736 non-null  float64
dtypes: float64(14), int64(5), object(16)
memory usage: 191.4+ MB
Code
#convert the pandas file to geopandas file
crime_df_geo = gpd.GeoDataFrame(crime_df, geometry=gpd.points_from_xy(crime_df.Longitude, crime_df.Latitude), crs={'init' :'epsg:4326'})
crime_df_geo.info()
/usr/local/lib/python3.9/dist-packages/pyproj/crs/crs.py:141: FutureWarning: '+init=<authority>:<code>' syntax is deprecated. '<authority>:<code>' is the preferred initialization method. When making the change, be mindful of axis order changes: https://pyproj4.github.io/pyproj/stable/gotchas.html#axis-order-changes-in-proj-6
  in_crs_string = _prepare_from_proj_string(in_crs_string)
<class 'geopandas.geodataframe.GeoDataFrame'>
RangeIndex: 716680 entries, 0 to 716679
Data columns (total 36 columns):
 #   Column                                                Non-Null Count   Dtype
---  ------                                                --------------   -----
 0   Incident Datetime                                     716680 non-null  object
 1   Incident Date                                         716680 non-null  object
 2   Incident Time                                         716680 non-null  object
 3   Incident Year                                         716680 non-null  int64
 4   Incident Day of Week                                  716680 non-null  object
 5   Report Datetime                                       716680 non-null  object
 6   Row ID                                                716680 non-null  int64
 7   Incident ID                                           716680 non-null  int64
 8   Incident Number                                       716680 non-null  int64
 9   CAD Number                                            555602 non-null  float64
 10  Report Type Code                                      716680 non-null  object
 11  Report Type Description                               716680 non-null  object
 12  Filed Online                                          144690 non-null  object
 13  Incident Code                                         716680 non-null  int64
 14  Incident Category                                     716064 non-null  object
 15  Incident Subcategory                                  716064 non-null  object
 16  Incident Description                                  716680 non-null  object
 17  Resolution                                            716680 non-null  object
 18  Intersection                                          678513 non-null  object
 19  CNN                                                   678513 non-null  float64
 20  Police District                                       716680 non-null  object
 21  Analysis Neighborhood                                 678381 non-null  object
 22  Supervisor District                                   678138 non-null  float64
 23  Supervisor District 2012                              678393 non-null  float64
 24  Latitude                                              678513 non-null  float64
 25  Longitude                                             678513 non-null  float64
 26  Point                                                 678513 non-null  object
 27  Neighborhoods                                         664168 non-null  float64
 28  ESNCAG - Boundary File                                7761 non-null    float64
 29  Central Market/Tenderloin Boundary Polygon - Updated  92127 non-null   float64
 30  Civic Center Harm Reduction Project Boundary          91531 non-null   float64
 31  HSOC Zones as of 2018-06-05                           149426 non-null  float64
 32  Invest In Neighborhoods (IIN) Areas                   0 non-null       float64
 33  Current Supervisor Districts                          678393 non-null  float64
 34  Current Police Districts                              677736 non-null  float64
 35  geometry                                              716680 non-null  geometry
dtypes: float64(14), geometry(1), int64(5), object(16)
memory usage: 196.8+ MB
Code
#intial visualization
fig, ax = plt.subplots(figsize=(12, 10))
crime_df_geo.to_crs(epsg=3857).plot(ax = ax,
                figsize=(12,12),
                markersize=40,
               color="black",
               edgecolor="white",
               alpha=0.8,
               marker="o"
            );
ctx.add_basemap(ax, source=ctx.providers.OpenStreetMap.Mapnik)

Prev Analysis

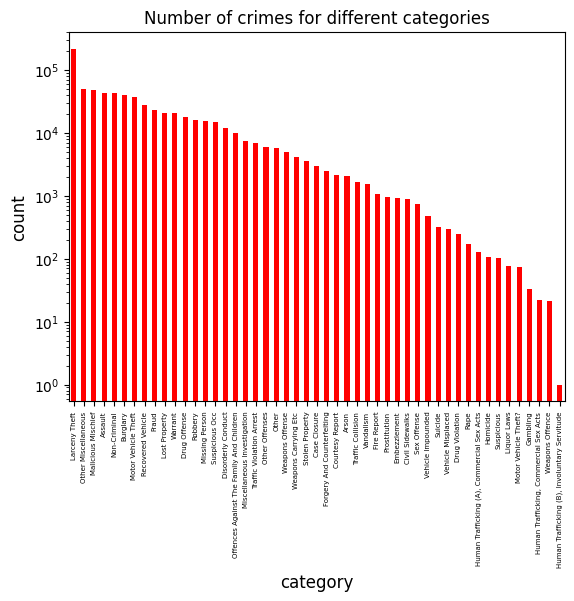

The number of crime in different categories

Code
#calculate the number of crime in different categories
q1 = crime_df.groupby('Incident Category').size().reset_index(name='count')
q1 = q1.sort_values(by='count', ascending=False)
q1.head(10)
Incident Category count
18 Larceny Theft 218642
29 Other Miscellaneous 49878
21 Malicious Mischief 48503
1 Assault 43600
26 Non-Criminal 42605
2 Burglary 40225
24 Motor Vehicle Theft 36698
33 Recovered Vehicle 27881
12 Fraud 22995
20 Lost Property 20831
Code
#data visualization
plt.figure()
ax = q1.plot(kind = 'bar', x = 'Incident Category' , y = 'count', logy = True, color = 'red', legend = False, align = 'center')
ax.set_ylabel('count',fontsize = 12)
ax.set_xlabel('category',fontsize = 12)
plt.xticks(fontsize=5, rotation=90)
plt.title('Number of crimes for different categories')
display()
<Figure size 640x480 with 0 Axes>

From the number of crime in different categories, we can find that ‘Larceny Theft’ top the rank and significantly outnumber other kinds, folliwing ‘Malicious Mischief’ and ‘Assault’. the large number of theft, for one things, results from the many places where it can happen. For another, the change in Califonia policy for the determination of crime also lower cost of crime that causes lower property damage.

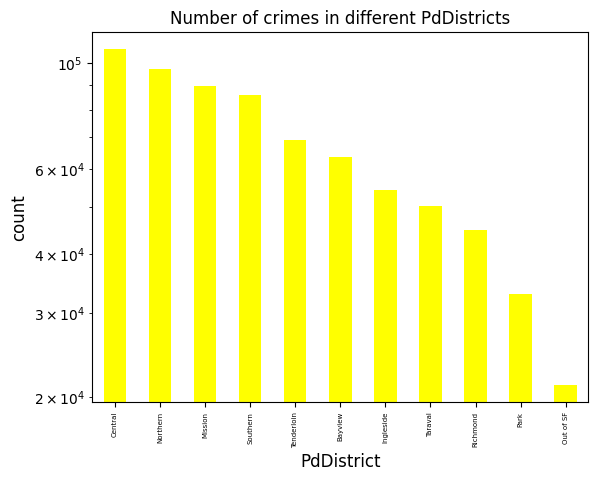

The number of crime in different PdDistricts

Code
#calculate the number of crime in different PdDistricts
q2 = crime_df.groupby('Police District').size().reset_index(name='count')
q2 = q2.sort_values(by='count', ascending=False)
q2.head(10)
Police District count
1 Central 107239
4 Northern 97302
3 Mission 89637
8 Southern 86064
10 Tenderloin 69222
0 Bayview 63678
2 Ingleside 54276
9 Taraval 50327
7 Richmond 44702
6 Park 32995
Code
#data visualization
plt.figure()
ax = q2.plot(kind = 'bar', x = 'Police District' , y = 'count', logy = True, color = 'yellow', legend = False, align = 'center')
ax.set_ylabel('count',fontsize = 12)
ax.set_xlabel('PdDistrict',fontsize = 12)
plt.xticks(fontsize=5, rotation=90)
plt.title('Number of crimes in different PdDistricts')
display()
<Figure size 640x480 with 0 Axes>

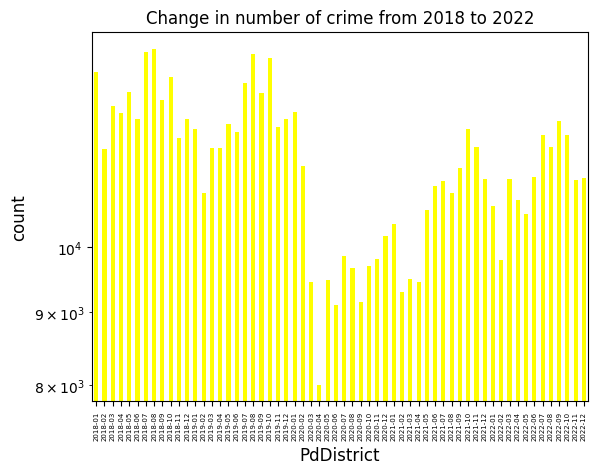

The trend of number of crime from 2018 to 2022

Code
# switch the form of time data for easier analysis
crime_df[['year','month', 'day']] = crime_df['Incident Date'].str.split('/', expand=True)
crime_df['day'] = pd.to_numeric(crime_df['day'])
crime_df['month'] = pd.to_numeric(crime_df['month'])
crime_df['year'] = pd.to_numeric(crime_df['year'])
crime_df[['hour','minute']] = crime_df['Incident Time'].str.split(':', expand=True)
crime_df['hour'] = pd.to_numeric(crime_df['hour'])
crime_df['minute'] = pd.to_numeric(crime_df['minute'])
Code
#select the data from 2018 to 2022
year = [2018,2019,2020,2021,2022]
crime_df_new = crime_df[crime_df.year.isin(year)]
crime_df_new.head()
Incident Datetime Incident Date Incident Time Incident Year Incident Day of Week Report Datetime Row ID Incident ID Incident Number CAD Number ... HSOC Zones as of 2018-06-05 Invest In Neighborhoods (IIN) Areas Current Supervisor Districts Current Police Districts geometry year month day hour minute
11 2022/06/27 12:00:00 PM 2022/06/27 12:00 2022 Monday 2023/03/15 05:20:00 PM 125439371000 1254393 230184129 230742480.0 ... NaN NaN 3.0 6.0 POINT (-122.40823 37.78736) 2022 6 27 12 0
25 2022/05/15 04:00:00 PM 2022/05/15 16:00 2022 Sunday 2022/05/17 07:32:00 PM 116100671000 1161006 226100018 NaN ... NaN NaN NaN NaN POINT EMPTY 2022 5 15 16 0
35 2018/09/03 09:00:00 AM 2018/09/03 09:00 2018 Monday 2018/09/03 01:17:00 PM 73006271000 730062 186245900 NaN ... NaN NaN NaN NaN POINT EMPTY 2018 9 3 9 0
36 2019/01/13 02:00:00 PM 2019/01/13 14:00 2019 Sunday 2019/01/14 12:10:00 PM 75982071000 759820 196009821 NaN ... NaN NaN NaN NaN POINT EMPTY 2019 1 13 14 0
37 2018/11/02 12:00:00 PM 2018/11/02 12:00 2018 Friday 2018/11/03 02:21:00 PM 73376171000 733761 180833020 NaN ... NaN NaN NaN NaN POINT EMPTY 2018 11 2 12 0

5 rows × 41 columns

Code
# calculate the monthly number of crime from 2018 to 2022
q3 = crime_df_new.groupby(['year','month']).size().reset_index(name='count')
q3 = q3.sort_values(by=['year','month'], ascending=True)
q3['year-month'] = q3['year'].astype(str) + '-' + q3['month'].astype(str).str.zfill(2)
q3.head()
year month count year-month
0 2018 1 13274 2018-01
1 2018 2 11727 2018-02
2 2018 3 12565 2018-03
3 2018 4 12421 2018-04
4 2018 5 12847 2018-05
Code
#data visualization
plt.figure()
ax = q3.plot(kind = 'bar', x = 'year-month' , y = 'count', logy = True, color = 'yellow', legend = False, align = 'center')
ax.set_ylabel('count',fontsize = 12)
ax.set_xlabel('PdDistrict',fontsize = 12)
plt.xticks(fontsize=5, rotation=90)
plt.title('Change in number of crime from 2018 to 2022')
display()
<Figure size 640x480 with 0 Axes>

From the bar chart of crime number based on the month, first of all, we can find that the crime nunmber show a seasonality, which increase from every year’s March and reach a peak in September and then drop till next year’s March. Also, we can find a sharp decrease at the begining of 2020. We can assume that this situation was highly influenced by Covid-19, and the influence is gradually weakened after begining of 2020 but count of crime is less than pre-covid anually.

The hourly distribution of crime in a day?

Code
# count the number of crime in different hours
q4 = crime_df_new.groupby('hour').size().reset_index(name = 'count')
q4 = q4.sort_values(by='hour', ascending=True)
q4.head()
hour count
0 0 37081
1 1 18247
2 2 15878
3 3 12917
4 4 10887
Code

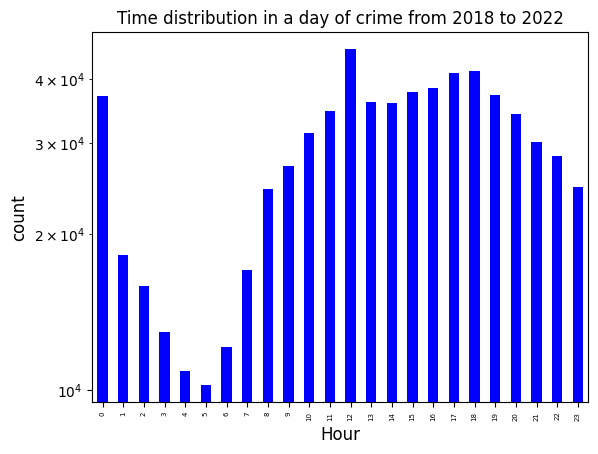

#chart visualization
plt.figure()
ax = q4.plot(kind = 'bar', x = 'hour' , y = 'count', logy = True, color = 'blue', legend = False, align = 'center')
ax.set_ylabel('count',fontsize = 12)
ax.set_xlabel('Hour',fontsize = 12)
plt.xticks(fontsize=5, rotation=90)
plt.title('Time distribution in a day of crime from 2018 to 2022')
display()
<Figure size 640x480 with 0 Axes>

From the number of crime change in a day, we can find that the frequency of crime have three peaks in a day: 12AM, 12PM, and 18PM. The peak time in 12AM and 18PM can be explained by the huge footfall during that time. However, the phenomenon that sudden increase in the 12AM and sharply drop after that time is hard to explained.

Code
#check the hourly distribution for different types of crime
q5 = crime_df_new.groupby(['hour','Incident Category']).size().reset_index(name = 'count')
q5 = q5.sort_values(by='count', ascending=False)
q5.head(24)
hour Incident Category count
841 18 Larceny Theft 15632
887 19 Larceny Theft 14667
556 12 Larceny Theft 14128
794 17 Larceny Theft 13798
932 20 Larceny Theft 13176
510 11 Larceny Theft 12020
746 16 Larceny Theft 11591
698 15 Larceny Theft 11536
603 13 Larceny Theft 11491
650 14 Larceny Theft 11245
979 21 Larceny Theft 10208
463 10 Larceny Theft 9859
18 0 Larceny Theft 9570
1026 22 Larceny Theft 8337
417 9 Larceny Theft 7121
1073 23 Larceny Theft 6780
371 8 Larceny Theft 5897
65 1 Larceny Theft 4951
12 0 Fraud 4652
328 7 Larceny Theft 3591
111 2 Larceny Theft 3414
552 12 Fraud 3185
844 18 Malicious Mischief 2990
757 16 Other Miscellaneous 2905
Code
#check the hourly distribution for the 'Larceny Theft' category
q5_theft = q5[q5['Incident Category'].isin(['Larceny Theft'])]
q5_theft = q5_theft.sort_values(by = 'hour',ascending = True)
q5_theft.head()
hour Incident Category count
18 0 Larceny Theft 9570
65 1 Larceny Theft 4951
111 2 Larceny Theft 3414
153 3 Larceny Theft 2746
198 4 Larceny Theft 2175
Code

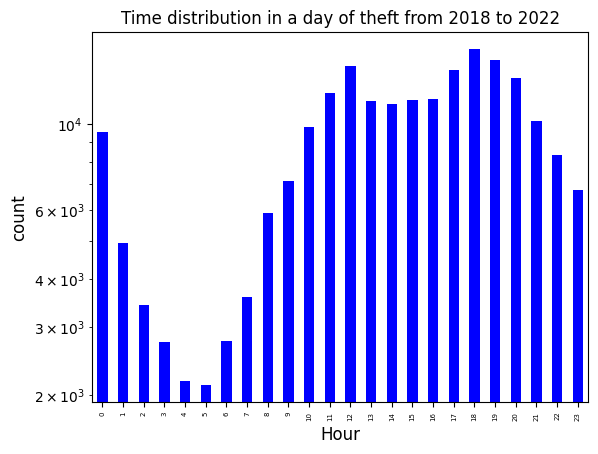

#data visualization
plt.figure()
ax = q5_theft.plot(kind = 'bar', x = 'hour' , y = 'count', logy = True, color = 'blue', legend = False, align = 'center')
ax.set_ylabel('count',fontsize = 12)
ax.set_xlabel('Hour',fontsize = 12)
plt.xticks(fontsize=5, rotation=90)
plt.title('Time distribution in a day of theft from 2018 to 2022')
display()
<Figure size 640x480 with 0 Axes>

The Resolution situation of crime in different categories

Code
#create dummy variables based on the 'resolution' column
crime_df_new['Resolution'].unique()
crime_df_new['Result'] = np.where(crime_df_new['Resolution'] == 'Open or Active', 0, 1)
crime_df_new.info()
SettingWithCopyWarning:
A value is trying to be set on a copy of a slice from a DataFrame.
Try using .loc[row_indexer,col_indexer] = value instead

See the caveats in the documentation: https://pandas.pydata.org/pandas-docs/stable/user_guide/indexing.html#returning-a-view-versus-a-copy
  crime_df_new['Result'] = np.where(crime_df_new['Resolution'] == 'Open or Active', 0, 1)
<class 'pandas.core.frame.DataFrame'>
Int64Index: 682474 entries, 11 to 716671
Data columns (total 42 columns):
 #   Column                                                Non-Null Count   Dtype
---  ------                                                --------------   -----
 0   Incident Datetime                                     682474 non-null  object
 1   Incident Date                                         682474 non-null  object
 2   Incident Time                                         682474 non-null  object
 3   Incident Year                                         682474 non-null  int64
 4   Incident Day of Week                                  682474 non-null  object
 5   Report Datetime                                       682474 non-null  object
 6   Row ID                                                682474 non-null  int64
 7   Incident ID                                           682474 non-null  int64
 8   Incident Number                                       682474 non-null  int64
 9   CAD Number                                            528524 non-null  float64
 10  Report Type Code                                      682474 non-null  object
 11  Report Type Description                               682474 non-null  object
 12  Filed Online                                          138643 non-null  object
 13  Incident Code                                         682474 non-null  int64
 14  Incident Category                                     681904 non-null  object
 15  Incident Subcategory                                  681904 non-null  object
 16  Incident Description                                  682474 non-null  object
 17  Resolution                                            682474 non-null  object
 18  Intersection                                          646095 non-null  object
 19  CNN                                                   646095 non-null  float64
 20  Police District                                       682474 non-null  object
 21  Analysis Neighborhood                                 645967 non-null  object
 22  Supervisor District                                   645740 non-null  float64
 23  Supervisor District 2012                              645980 non-null  float64
 24  Latitude                                              646095 non-null  float64
 25  Longitude                                             646095 non-null  float64
 26  Point                                                 646095 non-null  object
 27  Neighborhoods                                         632302 non-null  float64
 28  ESNCAG - Boundary File                                7453 non-null    float64
 29  Central Market/Tenderloin Boundary Polygon - Updated  87260 non-null   float64
 30  Civic Center Harm Reduction Project Boundary          86966 non-null   float64
 31  HSOC Zones as of 2018-06-05                           142555 non-null  float64
 32  Invest In Neighborhoods (IIN) Areas                   0 non-null       float64
 33  Current Supervisor Districts                          645980 non-null  float64
 34  Current Police Districts                              645342 non-null  float64
 35  geometry                                              682474 non-null  geometry
 36  year                                                  682474 non-null  int64
 37  month                                                 682474 non-null  int64
 38  day                                                   682474 non-null  int64
 39  hour                                                  682474 non-null  int64
 40  minute                                                682474 non-null  int64
 41  Result                                                682474 non-null  int64
dtypes: float64(14), geometry(1), int64(11), object(16)
memory usage: 223.9+ MB
Code
# calculate the number of different kinds of crime that got resolution
q6 = crime_df_new.groupby(['Incident Category','Result']).size().reset_index(name = 'count')
q6 = q6.sort_values(by = 'Incident Category', ascending = True)
q6.head()
q6_solve = q6[q6.Result == 1]
q6_solve.head()
# merge the chart with number of crime to calculate the reolution rate
q6_merge = pd.merge(q6_solve, q1, on='Incident Category')
q6_merge['solve_rate'] = q6_merge.count_x/q6_merge.count_y
q6_merge.sort_values(by = 'solve_rate', ascending = True)
Incident Category Result count_x count_y solve_rate
19 Lost Property 1 79 20831 0.003792
27 Other 1 67 5831 0.011490
36 Suicide 1 7 324 0.021605
37 Suspicious 1 3 102 0.029412
38 Suspicious Occ 1 474 14652 0.032351
10 Fire Report 1 35 1052 0.033270
17 Larceny Theft 1 7836 218642 0.035839
12 Fraud 1 955 22995 0.041531
22 Missing Person 1 697 15462 0.045078
23 Motor Vehicle Theft 1 1811 36698 0.049349
21 Miscellaneous Investigation 1 409 7457 0.054848
5 Courtesy Report 1 156 2101 0.074250
32 Recovered Vehicle 1 2745 27881 0.098454
20 Malicious Mischief 1 5109 48503 0.105334
31 Rape 1 19 172 0.110465
25 Non-Criminal 1 4790 42605 0.112428
2 Burglary 1 4617 40225 0.114779
9 Embezzlement 1 124 927 0.133765
33 Robbery 1 2986 15998 0.186648
0 Arson 1 450 2052 0.219298
41 Vandalism 1 389 1534 0.253585
29 Other Offenses 1 1654 6053 0.273253
11 Forgery And Counterfeiting 1 684 2461 0.277936
6 Disorderly Conduct 1 3325 11771 0.282474
1 Assault 1 12399 43600 0.284381
47 Weapons Offense 1 1653 4893 0.337830
26 Offences Against The Family And Children 1 3352 9862 0.339890
43 Vehicle Misplaced 1 104 297 0.350168
42 Vehicle Impounded 1 180 472 0.381356
16 Human Trafficking, Commercial Sex Acts 1 9 22 0.409091
39 Traffic Collision 1 739 1663 0.444378
28 Other Miscellaneous 1 26580 49878 0.532900
14 Homicide 1 61 106 0.575472
34 Sex Offense 1 445 746 0.596515
15 Human Trafficking (A), Commercial Sex Acts 1 78 130 0.600000
13 Gambling 1 20 33 0.606061
24 Motor Vehicle Theft? 1 47 74 0.635135
4 Civil Sidewalks 1 638 888 0.718468
18 Liquor Laws 1 57 77 0.740260
35 Stolen Property 1 2853 3563 0.800730
45 Weapons Carrying Etc 1 3498 4081 0.857143
7 Drug Offense 1 15127 17606 0.859196
30 Prostitution 1 811 941 0.861849
46 Weapons Offence 1 19 21 0.904762
44 Warrant 1 18952 20713 0.914981
8 Drug Violation 1 228 249 0.915663
40 Traffic Violation Arrest 1 6413 6890 0.930769
3 Case Closure 1 2804 2929 0.957323

From the resolution rate of different kinds of crime, we can also find that the top number of crime category also have a low resolution rate. ‘Larceny Theft’ only has 3% resolution rate, while ‘Marlicious Mischief’ has 10% resolution rate. We can conclude that the crime that people are most likely to confront in the daily life still have a huge influence on city life. Therefore, it’s necessary to perform a deeper analysis on which factor influence the conduct of crime.

Combine crime data with social-ecnomic data and Zoning & Construction data

clean the crime data

Code
#clean the crime dataset
crime_df_copy = crime_df_new.copy()
drop = ['Incident Datetime','Incident Date','Report Datetime','Row ID','Incident ID','Incident Number','CAD Number','Report Type Description','Filed Online','Incident Code','Incident Description',
        'CNN','Supervisor District','Central Market/Tenderloin Boundary Polygon - Updated','Civic Center Harm Reduction Project Boundary','HSOC Zones as of 2018-06-05','Invest In Neighborhoods (IIN) Areas',
        'Current Supervisor Districts','Current Police Districts']
crime_df_drop = crime_df_copy.drop(columns = drop)
crime_df_drop.info()
Code
#select the theft type data in 2020
crime_df_drop = crime_df_drop[crime_df_drop.year == 2020]
crime_df_drop = crime_df_drop[crime_df_drop['Incident Category'] == 'Larceny Theft']
crime_df_drop.reset_index()
Code
#get the geo boundary of San Francisco
sf_poly = osmnx.geocode_to_gdf('San Francisco, CA, USA')
sf_poly.plot()
Code
#convert to geopandas file
gpd_crime = gpd.GeoDataFrame(crime_df_drop, geometry = crime_df_drop['geometry'], crs={'init' :'epsg:4326'})
sf_poly.crs, gpd_crime.crs #.crs -- geodataframe
Code
#spatial join
gpd_crime_city = gpd.sjoin(gpd_crime,sf_poly,how='inner',op = 'intersects')
gpd_crime_city.tail(2)
Code
gpd_crime_city.info()
Code
#drop the useless data
gpd_crime_city = gpd_crime_city.drop(['bbox_north','bbox_south','bbox_east','bbox_west','index_right'],axis = 1)

Create the Physical Environment Data

Street

Code
#get the street data of san francisco
sf_streets = osmnx.graph_from_place('San Francisco, California', network_type = 'drive')
nodes, edges = osmnx.graph_to_gdfs(sf_streets)
Code
nodes.head(1)
Code
edges.head(1)
Code
edges.plot()
Code
# brief information of road dataset
sf_road = edges.copy()
print(sf_road['highway'].value_counts())
print('Number of rows is ' + str(sf_road.shape[0]))
print('Number of columns is ' + str(sf_road.shape[1]))
Code
# Combining similar road types to reduce classification number
sf_road['highway'] = sf_road['highway'].str.replace('_link','')
sf_road['highway'] = np.where(sf_road['highway']=='trunk','secondary',sf_road['highway'])
sf_road['highway'] = np.where(sf_road['highway']=='living_street','residential',sf_road['highway'])
print(sf_road['highway'].value_counts())
Code
#based on road type to create sub-dataset
sf_highways = sf_road[sf_road.highway == 'motorway']
sf_pry = sf_road[sf_road.highway == 'primary']
sf_second = sf_road[sf_road.highway == 'secondary']
sf_resid = sf_road[sf_road.highway == 'residential']
sf_tertiary = sf_road[sf_road.highway == 'tertiary']

sf_highways.crs
Code
# convert to geopandas files and set function to calcualte the min distance from point to road
gpd_crime_city_utm = gpd_crime_city.to_crs({'init': 'epsg:32610'}).copy()
highway_utm = sf_highways.to_crs({'init': 'epsg:32610'}).copy()
primary_utm = sf_pry.to_crs({'init': 'epsg:32610'}).copy()
secondary_utm = sf_second.to_crs({'init': 'epsg:32610'}).copy()
tertiary_utm = sf_tertiary.to_crs({'init': 'epsg:32610'}).copy()
residential_utm = sf_resid.to_crs({'init': 'epsg:32610'}).copy()
sf_road_utm = sf_road.to_crs({'init': 'epsg:32610'}).copy()

def distance_to_roadway(gps,roadway):
  dists = []
  for i in roadway.geometry:
    dists.append(i.distance(gps))
  return (np.min(dists))
Code
tqdm.pandas()
gpd_crime_city['Closest_highway'] = gpd_crime_city_utm['geometry'].progress_apply(distance_to_roadway,roadway = highway_utm)
Code
tqdm.pandas()
gpd_crime_city['Closest_primary'] = gpd_crime_city_utm['geometry'].progress_apply(distance_to_roadway,roadway = primary_utm)
Code
tqdm.pandas()
gpd_crime_city['Closest_secondary'] = gpd_crime_city_utm['geometry'].progress_apply(distance_to_roadway,roadway = secondary_utm)
Code
tqdm.pandas()
gpd_crime_city['Closest_tertiary'] = gpd_crime_city_utm['geometry'].progress_apply(distance_to_roadway,roadway = tertiary_utm)
Code
gpd_crime_city.head(2)
Incident Time Incident Year Incident Day of Week Report Type Code Incident Category Incident Subcategory Resolution Intersection Police District Analysis Neighborhood ... lat lon display_name class type importance Closest_highway Closest_primary Closest_secondary Closest_tertiary
9676 02:00 2020 Friday II Larceny Theft Larceny Theft - Other Open or Active BASS CT \ WHITNEY YOUNG CIR Bayview Bayview Hunters Point ... 37.779026 -122.419906 San Francisco, CAL Fire Northern Region, Calif... boundary administrative 1.025131 1468.413426 534.950176 535.680061 506.558042
13583 20:00 2020 Saturday II Larceny Theft Larceny - From Vehicle Open or Active CLAY ST \ LARKIN ST Central Russian Hill ... 37.779026 -122.419906 San Francisco, CAL Fire Northern Region, Calif... boundary administrative 1.025131 2149.153684 390.024468 285.145981 97.658841

2 rows × 36 columns

Code
# based on the closest distance from point to each type of roads to ensure the road type where the crime point locate
def get_category(row):
    if row['Closest_highway'] < 10:
        return 'highway'
    elif row['Closest_primary'] < 10:
        return 'primary'
    elif row['Closest_secondary'] < 10:
        return 'secondary'
    elif row['Closest_tertiary'] < 10:
        return 'tertiary'
    else:
        return 'residential'
gpd_crime_city['Crime_Location'] = gpd_crime_city.apply(get_category, axis=1)
Code
gpd_crime_city.head(2)
Incident Time Incident Year Incident Day of Week Report Type Code Incident Category Incident Subcategory Resolution Intersection Police District Analysis Neighborhood ... lon display_name class type importance Closest_highway Closest_primary Closest_secondary Closest_tertiary Crime_Location
9676 02:00 2020 Friday II Larceny Theft Larceny Theft - Other Open or Active BASS CT \ WHITNEY YOUNG CIR Bayview Bayview Hunters Point ... -122.419906 San Francisco, CAL Fire Northern Region, Calif... boundary administrative 1.025131 1468.413426 534.950176 535.680061 506.558042 residential
13583 20:00 2020 Saturday II Larceny Theft Larceny - From Vehicle Open or Active CLAY ST \ LARKIN ST Central Russian Hill ... -122.419906 San Francisco, CAL Fire Northern Region, Calif... boundary administrative 1.025131 2149.153684 390.024468 285.145981 97.658841 residential

2 rows × 37 columns

Code
gpd_crime_city.Crime_Location.value_counts()
residential    10518
secondary       8670
tertiary        6382
primary         2520
highway          123
Name: Crime_Location, dtype: int64

Zoning

Code
#https://drive.google.com/file/d/1sremJO16LufbhJdXzSiAViXUmtJCieCN/view?usp=share_link
id = "1sremJO16LufbhJdXzSiAViXUmtJCieCN"
file = drive.CreateFile({'id':id})
file.GetContentFile('SF_Zoning.csv')
Code
# load zoning data
zoning_df = pd.read_csv('SF_Zoning.csv')
zoning_df.head()
the_geom zoning_sim districtname url gen zoning codesection
0 MULTIPOLYGON (((-122.41533105377357 37.7723137... RED-MX RESIDENTIAL ENCLAVE-MIXED https://codelibrary.amlegal.com/codes/san_fran... Mixed Use RED-MX 847
1 MULTIPOLYGON (((-122.38902391194917 37.7381094... NCD BAYVIEW NEIGHBORHOOD COMMERCIAL DISTRICT https://codelibrary.amlegal.com/codes/san_fran... Mixed Use NCD-BAYVIEW 737
2 MULTIPOLYGON (((-122.389357706792 37.738606785... NCT-3 MODERATE SCALE NEIGHBORHOOD COMMERCIAL TRANSIT... https://codelibrary.amlegal.com/codes/san_fran... Mixed Use NCT-3 752
3 MULTIPOLYGON (((-122.41533105377357 37.7723137... RED RESIDENTIAL ENCLAVE https://codelibrary.amlegal.com/codes/san_fran... Residential RED 813
4 MULTIPOLYGON (((-122.38155774047206 37.7381229... PDR-1-B PDR LIGHT INDUSTRIAL BUFFER https://codelibrary.amlegal.com/codes/san_fran... Industrial PDR-1-B 210.3
Code
from shapely.wkt import loads
Code
zoning_df['geometry'] = zoning_df['the_geom'].apply(loads)

# Create a GeoPandas DataFrame from the Pandas DataFrame
zoning_gdf = gpd.GeoDataFrame(zoning_df, crs='EPSG:4326', geometry='geometry')
Code
zoning_gdf.head()
Code
#drop irrelevant data
drop = ['zoning_sim','url','zoning','codesection']
zoning_new = zoning_gdf.drop(columns=drop)
zoning_new.head()
Code
#brief visualization
fig, ax = plt.subplots(figsize=(6, 4))
zoning_new.to_crs(epsg=3857).plot(ax = ax,
                figsize=(12,12),
                markersize=40,
               color="black",
               edgecolor="white",
               alpha=0.8,
               marker="o"
            );
ctx.add_basemap(ax, source=ctx.providers.OpenStreetMap.Mapnik)
Code
#spatial join zoning data and crime data
gpd_crime_city_zone = gpd.sjoin(gpd_crime_city, zoning_new, op='within')
gpd_crime_city_zone.head(2)

Building

Code
#https://drive.google.com/file/d/1-7NryT-DamfZnKO7mU9ZqZsISg5TInsC/view?usp=share_link
id = "1-7NryT-DamfZnKO7mU9ZqZsISg5TInsC"
file = drive.CreateFile({'id':id})
file.GetContentFile('sf_building.csv')
Code
#load building footprints data
building_df = pd.read_csv('sf_building.csv')
building_df.head()
sf16_bldgid area_id mblr p2010_name p2010_zminn88ft p2010_zmaxn88ft gnd_cells50cm gnd_mincm gnd_maxcm gnd_rangecm ... hgt_majoritycm hgt_minoritycm hgt_mediancm gnd_min_m median_1st_m hgt_median_m gnd1st_delta peak_1st_m globalid shape
0 201006.000000 1 SF4570025 SanfranF_4606.flt 16.3249 66.2671 178250 507 704 197 ... 813 349 850 5.07 14.16 8.50 9.09 23.85 {CF7EF595-68E6-4950-B361-CC82D77383A0} MULTIPOLYGON (((-122.37950387699999 37.7397994...
1 201006.000000 2 SM005050270 SanfranI_09417.flt 81.7802 214.1874 144111 2515 3419 904 ... 737 11 735 25.15 39.25 7.35 14.10 66.94 {806F8EDB-7B25-4054-898E-6F2CF65D072E} MULTIPOLYGON (((-122.41894297800002 37.7076482...
2 201006.000000 3 SF3794028 Sanfran_Orig_1330.flt 12.5027 102.5737 115295 164 507 343 ... 734 -86 1157 1.64 15.29 11.57 13.65 59.18 {F0F234CF-3F0B-439D-B59A-8899C2135F23} MULTIPOLYGON (((-122.38881976200003 37.7792352...
3 201006.003228 32278 SM004154340 SanfranP_3364.flt 342.5260 381.3803 708 10454 10532 78 ... 521 140 456 104.54 109.39 4.56 4.85 111.79 {C321EB73-7E6E-49B5-822B-3E7DD3A7F0AD} MULTIPOLYGON (((-122.45552821000001 37.7074943...
4 201006.000000 4 SF7295021 NaN NaN NaN 107634 4346 5185 839 ... 1078 16 1153 43.46 61.58 11.53 18.12 69.72 {C52C089C-B0A6-4716-8358-C568A65861DC} MULTIPOLYGON (((-122.47734992300002 37.7289024...

5 rows × 43 columns

Code
##keep the geometry and height data
building_df = building_df[['peak_1st_m','shape']]
building_df.head(2)
Code
building_df['geometry'] = building_df['shape'].apply(loads)
# Create a GeoPandas DataFrame from the Pandas DataFrame
building_gdf = gpd.GeoDataFrame(building_df, crs='EPSG:4326', geometry='geometry')
Code
building_gdf.head(2)
Code
# Calculate the area of each building
building_gdf['area'] = building_gdf['geometry'].area
building_gdf.head(2)
Code
# turan the form of data from polygon to point for find nearest point
point_gdf = building_gdf.copy()
point_gdf["geometry"] = building_gdf.centroid
point_gdf.head(2)
Code
gpd_crime_city_zone = gpd_crime_city_zone.rename(columns={'index_left': 'left'})
gpd_crime_city_zone = gpd_crime_city_zone.rename(columns={'index_right': 'right'})
Code
gpd_crime_city_zone.head(2)
Code
from google.colab import drive
drive.mount('/content/drive')
#save_path = '/content/drive/MyDrive/Colab Notebooks/data/gpd_crime_city_zone.csv'
#df.to_csv(save_path, index=False)
Mounted at /content/drive
Code
#https://drive.google.com/file/d/1WkxWvKEsSpq50x-BEasGqmsgu6pi91_m/view?usp=share_link
id = "1WkxWvKEsSpq50x-BEasGqmsgu6pi91_m"
file = drive.CreateFile({'id':id})
file.GetContentFile('gpd_crime_city_zone.csv')
Code
gpd_crime_city_zone = pd.read_csv('gpd_crime_city_zone.csv')
gpd_crime_city_zone.head()
Incident Time Incident Year Incident Day of Week Report Type Code Incident Category Incident Subcategory Resolution Intersection Police District Analysis Neighborhood ... Closest_primary Closest_secondary Closest_tertiary Crime_Location right the_geom districtname gen buffer_5m buffer
0 02:00 2020 Friday II Larceny Theft Larceny Theft - Other Open or Active BASS CT \ WHITNEY YOUNG CIR Bayview Bayview Hunters Point ... 534.950176 535.680061 506.558042 residential 815 MULTIPOLYGON (((-122.38222192626027 37.7365910... RESIDENTIAL- HOUSE, TWO FAMILY Residential POLYGON ((-117.38469170531177 37.7337597458953... POLYGON ((-117.38469170531177 37.7337597458953...
1 13:59 2020 Sunday VI Larceny Theft Theft From Vehicle Open or Active WHITNEY YOUNG CIR \ CASHMERE ST \ DEDMAN CT Bayview Bayview Hunters Point ... 364.965970 433.206386 203.201740 residential 815 MULTIPOLYGON (((-122.38222192626027 37.7365910... RESIDENTIAL- HOUSE, TWO FAMILY Residential POLYGON ((-117.38571301129124 37.7366011278019... POLYGON ((-117.38571301129124 37.7366011278019...
2 16:28 2020 Friday II Larceny Theft Larceny Theft - Other Open or Active LA SALLE AVE \ OSCEOLA LN Bayview Bayview Hunters Point ... 833.743266 461.886008 835.429639 residential 815 MULTIPOLYGON (((-122.38222192626027 37.7365910... RESIDENTIAL- HOUSE, TWO FAMILY Residential POLYGON ((-117.3819485575142 37.73152913469796... POLYGON ((-117.3819485575142 37.73152913469796...
3 18:00 2020 Tuesday II Larceny Theft Larceny - Auto Parts Open or Active INGALLS ST \ HARBOR RD Bayview Bayview Hunters Point ... 951.461748 255.279620 825.220932 residential 815 MULTIPOLYGON (((-122.38222192626027 37.7365910... RESIDENTIAL- HOUSE, TWO FAMILY Residential POLYGON ((-117.3799317268322 37.73338073279184... POLYGON ((-117.3799317268322 37.73338073279184...
4 21:00 2020 Sunday VI Larceny Theft Theft From Vehicle Open or Active CASHMERE ST \ HUDSON AVE Bayview Bayview Hunters Point ... 582.547890 387.780374 420.026310 residential 815 MULTIPOLYGON (((-122.38222192626027 37.7365910... RESIDENTIAL- HOUSE, TWO FAMILY Residential POLYGON ((-117.38342544658872 37.7358032525956... POLYGON ((-117.38342544658872 37.7358032525956...

5 rows × 43 columns

Code
gpd_crime_city_zone = gpd.GeoDataFrame(gpd_crime_city_zone, geometry=gpd.points_from_xy(gpd_crime_city_zone.Longitude, gpd_crime_city_zone.Latitude), crs={'init' :'epsg:4326'})
gpd_crime_city_zone.info()
Code
from scipy.spatial import cKDTree
Code
pd_crime_city_zone = np.array(list(gpd_crime_city_zone.geometry.apply(lambda pt: (pt.x, pt.y))))
point_df = np.array(list(point_gdf.geometry.apply(lambda pt: (pt.x, pt.y))))

# Build cKDTree from crime points
tree = cKDTree(point_df)

# Query tree for nearest crime to each Boston point
dist, idx = tree.query(pd_crime_city_zone, k=1)

# Add nearest crime column to boston GeoDataFrame
gpd_crime_city_zone['builidng_nn1'] = point_gdf.loc[idx, 'peak_1st_m'].values
Code
drop = ['buffer_5m','buffer','right']
gpd_crime_city_zone = gpd_crime_city_zone.drop(columns=drop)
Code
val_dict = {'highway': 24, 'primary': 20, 'secondary': 12, 'tertiary': 8, 'residential': 6}
gpd_crime_city_zone['road_width'] = gpd_crime_city_zone['Crime_Location'].map(val_dict)
Code
gpd_crime_city_zone['rate_BS'] = gpd_crime_city_zone['builidng_nn1']/gpd_crime_city_zone['road_width']

Census tract

load basic census tract boundary

Code
#https://drive.google.com/file/d/1DbA90nYecBQnwRkcqUAAP8vT7OQP9MWz/view?usp=share_link
id = "1DbA90nYecBQnwRkcqUAAP8vT7OQP9MWz"
file = drive.CreateFile({'id':id})
file.GetContentFile('sf_centra.csv')
Code
ct_df = pd.read_csv('sf_centra.csv')
ct_df.info()
<class 'pandas.core.frame.DataFrame'>
RangeIndex: 176 entries, 0 to 175
Data columns (total 47 columns):
 #   Column      Non-Null Count  Dtype
---  ------      --------------  -----
 0   the_geom    176 non-null    object
 1   OBJECTID    176 non-null    int64
 2   FIPSSTCO    176 non-null    int64
 3   TRT2000     176 non-null    int64
 4   STFID       176 non-null    int64
 5   TRACTID     176 non-null    float64
 6   STATE       176 non-null    int64
 7   COUNTY      176 non-null    int64
 8   TRACT       176 non-null    int64
 9   POP2000     176 non-null    int64
 10  WHITE       176 non-null    int64
 11  BLACK       176 non-null    int64
 12  AMERI_ES    176 non-null    int64
 13  ASIAN       176 non-null    int64
 14  HAWN_PI     176 non-null    int64
 15  OTHER       176 non-null    int64
 16  MULT_RACE   176 non-null    int64
 17  HISPANIC    176 non-null    int64
 18  MALES       176 non-null    int64
 19  FEMALES     176 non-null    int64
 20  AGE_UNDER5  176 non-null    int64
 21  AGE_5_17    176 non-null    int64
 22  AGE_18_21   176 non-null    int64
 23  AGE_22_29   176 non-null    int64
 24  AGE_30_39   176 non-null    int64
 25  AGE_40_49   176 non-null    int64
 26  AGE_50_64   176 non-null    int64
 27  AGE_65_UP   176 non-null    int64
 28  MED_AGE     176 non-null    float64
 29  MED_AGE_M   176 non-null    float64
 30  MED_AGE_F   176 non-null    float64
 31  HOUSEHOLDS  176 non-null    int64
 32  AVE_HH_SZ   176 non-null    float64
 33  HSEHLD_1_M  176 non-null    int64
 34  HSEHLD_1_F  176 non-null    int64
 35  MARHH_CHD   176 non-null    int64
 36  MARHH_NO_C  176 non-null    int64
 37  MHH_CHILD   176 non-null    int64
 38  FHH_CHILD   176 non-null    int64
 39  FAMILIES    176 non-null    int64
 40  AVE_FAM_SZ  176 non-null    float64
 41  HSE_UNITS   176 non-null    int64
 42  URBAN       176 non-null    int64
 43  RURAL       176 non-null    int64
 44  VACANT      176 non-null    int64
 45  OWNER_OCC   176 non-null    int64
 46  RENTER_OCC  176 non-null    int64
dtypes: float64(6), int64(40), object(1)
memory usage: 64.8+ KB
Code
ct_df['TRACTID'] = ct_df['TRACTID'].astype('object')

load social-economic data based on the census tract

Code
import censusdata
from census import Census
from us import states
Code
# Define the Census API key
censusdata.censuskey = "93db71b5bb2f994846b61d1cb53de6b204ed41b8"
c = Census("93db71b5bb2f994846b61d1cb53de6b204ed41b8")
year = 2020
state_fips = '06'  # California
county_fips = '075'  # San Francisco County

#   B07010_004 -- Estimate!!Total:!!With income:!!$1 to $9,999 or loss -- poverty indicator
# B06009_002 -- Estimate!!Total:!!Less than high school graduate
# B09010_002 -- Estimate!!Total:!!Living in household with Supplemental Security Income (SSI), cash public assistance income, or Food Stamps/SNAP in the past 12 months:
# B27011_008 -- Estimate!!Total:!!In labor force:!!Unemployed:
# B11013_002 -- Estimate!!Total:!!Married-couple subfamily
# B11013_005 -- Estimate!!Total:!!Mother-child subfamily
# B11013_006 -- Estimate!!Total:!!Father-child subfamily
va_census = c.acs5.state_county_tract(fields = ('NAME','B07010_004E','B06009_002E', 'B09010_002E', 'B27011_008E','B11014_005E','B11014_006E','B11014_009E'),
                                      state_fips = '06',
                                      county_fips = '075',
                                      tract = "*",
                                      year = 2020)
Code
sfp_df = pd.DataFrame(va_census)
sfp_df.head(2)
Code
sfp_df['tract'] = sfp_df['NAME'].str.extract(r'Census Tract (\d+\.\d+)', expand=False)
Code
sfp_df.head(2)
Code
sfp_df = sfp_df.rename(columns={'B07010_004E': 'low_income', 'B06009_002E':'low_education','B09010_002E':'fd_secure','B27011_008E':'unemploy','B11014_005E':'couple_fa',
                                'B11014_006E':'ma-child','B11014_009E':'fa-child'})
sfp_df.head(2)
Code
sfp_df = sfp_df.rename(columns={'tract': 'TRACTID'})
sfp_df.head(2)
Code
socieco_df = pd.merge(ct_df, sfp_df, on='TRACTID',how='left')
Code
ct_df['geometry'] = ct_df['the_geom'].apply(loads)
# Create a GeoPandas DataFrame from the Pandas DataFrame
ct_gdf = gpd.GeoDataFrame(ct_df, crs='EPSG:4326', geometry='geometry')

Data Analysis and Visualization

Code
# the data that crime with place's social-economic type
gpd_crime_fnl = gpd.sjoin(gpd_crime_city_zone, ct_gdf, op='within')
Code
pd.set_option('display.max_columns', None)
Code
gpd_crime_fnl.head(2)
Incident Time Incident Year Incident Day of Week Report Type Code Incident Category Incident Subcategory Resolution Intersection Police District Analysis Neighborhood Supervisor District 2012 Latitude Longitude Point Neighborhoods ESNCAG - Boundary File geometry year month day hour minute Result place_id osm_type osm_id lat lon display_name class type importance Closest_highway Closest_primary Closest_secondary Closest_tertiary Crime_Location the_geom_left districtname gen builidng_nn1 road_width rate_BS index_right the_geom_right OBJECTID FIPSSTCO TRT2000 STFID TRACTID STATE COUNTY TRACT POP2000 WHITE BLACK AMERI_ES ASIAN HAWN_PI OTHER MULT_RACE HISPANIC MALES FEMALES AGE_UNDER5 AGE_5_17 AGE_18_21 AGE_22_29 AGE_30_39 AGE_40_49 AGE_50_64 AGE_65_UP MED_AGE MED_AGE_M MED_AGE_F HOUSEHOLDS AVE_HH_SZ HSEHLD_1_M HSEHLD_1_F MARHH_CHD MARHH_NO_C MHH_CHILD FHH_CHILD FAMILIES AVE_FAM_SZ HSE_UNITS URBAN RURAL VACANT OWNER_OCC RENTER_OCC
0 02:00 2020 Friday II Larceny Theft Larceny Theft - Other Open or Active BASS CT \ WHITNEY YOUNG CIR Bayview Bayview Hunters Point 10.0 37.733760 -122.384692 POINT (-122.38469170531177 37.73375974589532) 86.0 NaN POINT (-122.38469 37.73376) 2020 4 10 2 0 0 297983890 relation 111968 37.779026 -122.419906 San Francisco, CAL Fire Northern Region, Calif... boundary administrative 1.025131 1468.413426 534.950176 535.680061 506.558042 residential MULTIPOLYGON (((-122.38222192626027 37.7365910... RESIDENTIAL- HOUSE, TWO FAMILY Residential 18.58 6 3.096667 42 MULTIPOLYGON (((-122.38155725680222 37.7381228... 239 6075 23102 6075023102 231.02 6 75 23102 3600 230 2625 7 421 29 148 140 321 1637 1963 262 957 180 340 559 504 482 316 31.0 26.7 34.5 1259 2.86 111 203 171 117 24 307 876 3.4 1289 0 0 30 456 803
1 13:59 2020 Sunday VI Larceny Theft Theft From Vehicle Open or Active WHITNEY YOUNG CIR \ CASHMERE ST \ DEDMAN CT Bayview Bayview Hunters Point 10.0 37.736601 -122.385713 POINT (-122.38571301129124 37.7366011278019) 86.0 NaN POINT (-122.38571 37.73660) 2020 2 9 13 59 0 297983890 relation 111968 37.779026 -122.419906 San Francisco, CAL Fire Northern Region, Calif... boundary administrative 1.025131 1194.113022 364.965970 433.206386 203.201740 residential MULTIPOLYGON (((-122.38222192626027 37.7365910... RESIDENTIAL- HOUSE, TWO FAMILY Residential 18.58 6 3.096667 42 MULTIPOLYGON (((-122.38155725680222 37.7381228... 239 6075 23102 6075023102 231.02 6 75 23102 3600 230 2625 7 421 29 148 140 321 1637 1963 262 957 180 340 559 504 482 316 31.0 26.7 34.5 1259 2.86 111 203 171 117 24 307 876 3.4 1289 0 0 30 456 803
Code
gpd_crime_fnl['gen'].value_counts()
Code
def get_category(row):
    if row['gen'] == 'Residential':
        return 1
    elif row['gen'] == 'Mixed Use':
        return 2
    elif row['gen'] == 'Commercial':
        return 3
    elif row['gen'] == 'Public':
        return 4
    else:
        return 5
gpd_crime_fnl['ztype'] = gpd_crime_fnl.apply(get_category, axis=1)
Code
gpd_crime_fnl['Crime_Location'].value_counts()
Code
def get_category(row):
    if row['Crime_Location'] == 'residential':
        return 1
    elif row['Crime_Location'] == 'secondary':
        return 2
    elif row['Crime_Location'] == 'tertiary':
        return 3
    elif row['Crime_Location'] == 'primary':
        return 4
    else:
        return 5
gpd_crime_fnl['rtype'] = gpd_crime_fnl.apply(get_category, axis=1)
Code
# Numerical Features
numerical = ['Result','Neighborhoods', 'Supervisor District 2012', 'month', 'day', 'hour', 'minute', 'Closest_highway', 'Closest_primary', 'Closest_secondary', 'Closest_tertiary',
              'road_width', 'rate_BS', 'POP2000','Longitude', 'Latitude', 'MALES', 'FEMALES','AGE_UNDER5','AGE_5_17','AGE_18_21','AGE_22_29','AGE_30_39','AGE_40_49',
             'AGE_50_64','AGE_65_UP','MED_AGE','MED_AGE_M','MED_AGE_F','HOUSEHOLDS','AVE_HH_SZ','HSEHLD_1_M','HSEHLD_1_F','MARHH_CHD','MARHH_NO_C','MHH_CHILD','FHH_CHILD','FAMILIES',
             'AVE_FAM_SZ','HSE_UNITS','VACANT','OWNER_OCC','RENTER_OCC','rtype','ztype']

# Categorical Features
categorical = ['Incident Day of Week', 'Report Type Code', 'Crime_Location','gen']
Code
df_vs = gpd_crime_fnl.copy()
Code

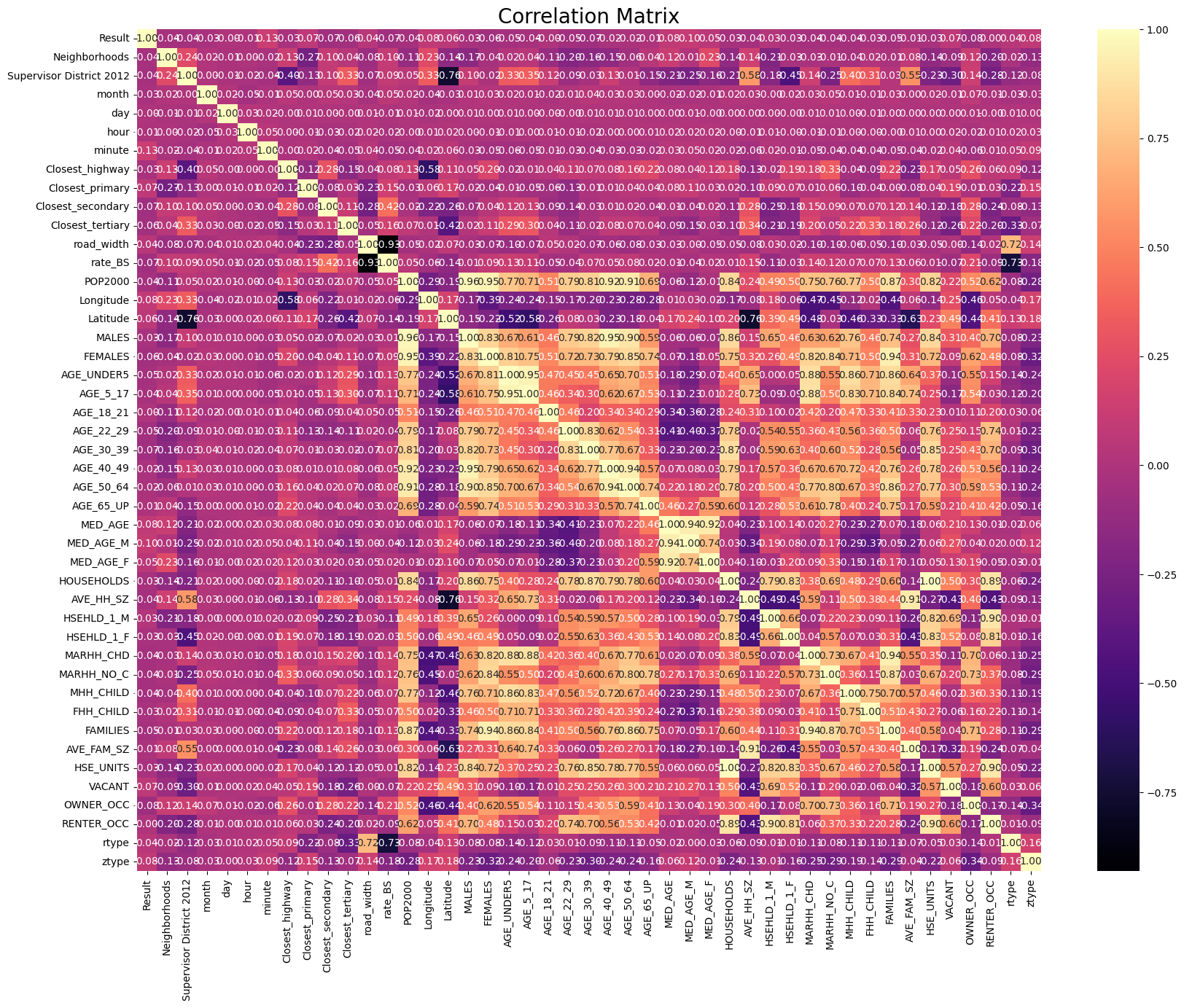

f, ax = plt.subplots(figsize= [20,15])
sns.heatmap(df_vs[numerical].corr(), annot=True, fmt=".2f", ax=ax, cmap = "magma" )
ax.set_title("Correlation Matrix", fontsize=20)
plt.show()

Code
Corr = pd.DataFrame(df_vs[numerical].corr()['Result'].sort_values(ascending = False))
Corr = Corr.iloc[1:,:]
Corr.columns = ['Targer Correlation']
Corr
Targer Correlation
minute 0.125436
MED_AGE_M 0.103229
MED_AGE 0.082230
Longitude 0.082165
ztype 0.080871
Closest_primary 0.071255
VACANT 0.070051
Latitude 0.059627
MED_AGE_F 0.049638
road_width 0.039319
rtype 0.038533
HSEHLD_1_M 0.025309
RENTER_OCC 0.001603
day -0.000748
AGE_18_21 -0.001998
hour -0.005705
AGE_65_UP -0.006762
AVE_FAM_SZ -0.012245
AGE_50_64 -0.017518
AGE_40_49 -0.024185
HSE_UNITS -0.026224
month -0.026534
Closest_highway -0.026694
MALES -0.027852
HSEHLD_1_F -0.028811
FHH_CHILD -0.031284
HOUSEHOLDS -0.034578
AGE_5_17 -0.037363
Neighborhoods -0.037629
MHH_CHILD -0.041164
MARHH_NO_C -0.041853
MARHH_CHD -0.042327
Supervisor District 2012 -0.042750
AVE_HH_SZ -0.044648
POP2000 -0.044909
AGE_UNDER5 -0.047650
FAMILIES -0.047962
AGE_22_29 -0.054750
Closest_tertiary -0.056600
FEMALES -0.060230
rate_BS -0.065186
AGE_30_39 -0.068832
Closest_secondary -0.070957
OWNER_OCC -0.078604
Code

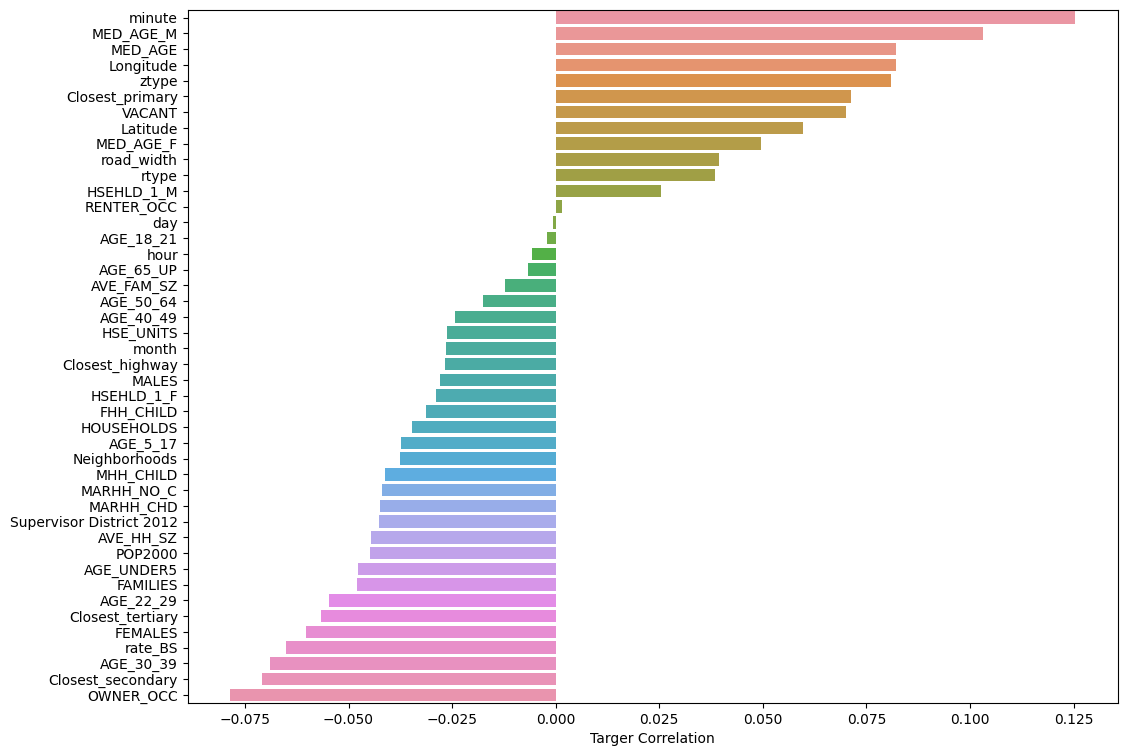

g0 = sns.barplot(x="Targer Correlation", y=Corr.index, data=Corr)
g0.figure.set_size_inches(12, 9)

Code
gpd_crime_vs = gpd_crime_fnl.copy()
Code

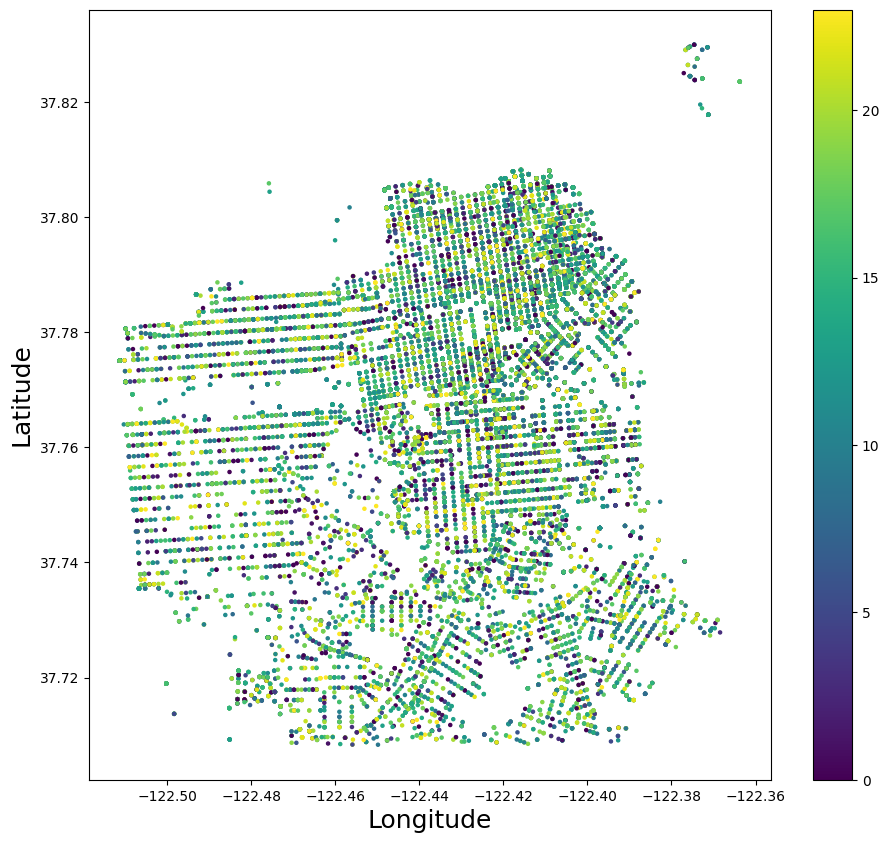

plt.figure(figsize = (11, 10))
plt.scatter(gpd_crime_vs.Longitude, gpd_crime_vs.Latitude, s=5, c = gpd_crime_vs.hour)
plt.colorbar(); plt.xlabel('Longitude', fontsize=18); plt.ylabel('Latitude', fontsize=18)
Text(0, 0.5, 'Latitude')

Code
plt.figure(figsize = (11, 10))
plt.scatter(gpd_crime_vs.Longitude, gpd_crime_vs.Latitude, s=5, c = gpd_crime_vs.Result)
plt.colorbar(); plt.xlabel('Longitude', fontsize=18); plt.ylabel('Latitude', fontsize=18)
Text(0, 0.5, 'Latitude')

Code

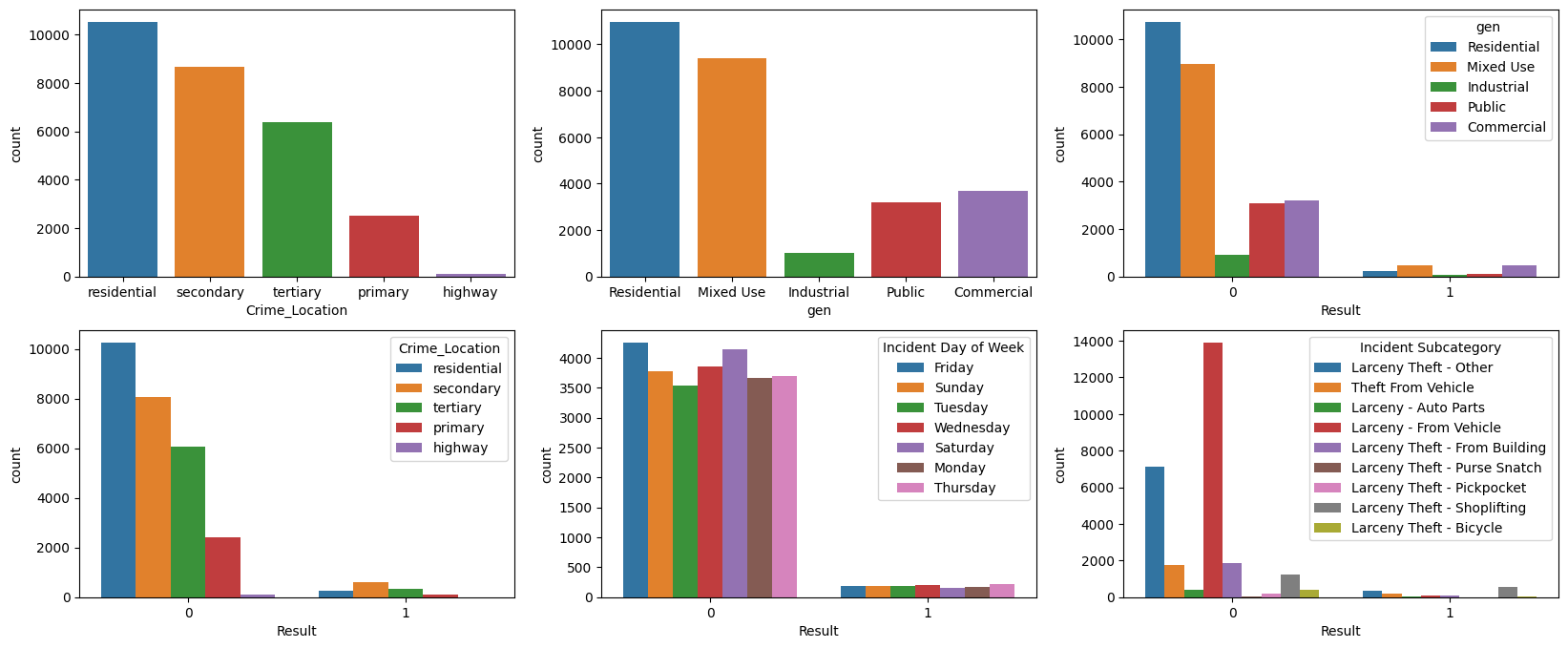

_,axss = plt.subplots(2,3, figsize = [20,8])
sns.countplot(x = 'Crime_Location', data = gpd_crime_vs,ax=axss[0][0])
sns.countplot(x = 'gen', data = gpd_crime_vs,ax=axss[0][1])
sns.countplot(x = 'Result', hue = gpd_crime_vs['gen'], data = gpd_crime_vs,ax=axss[0][2])
sns.countplot(x = 'Result', hue = gpd_crime_vs['Crime_Location'], data = gpd_crime_vs,ax=axss[1][0])
sns.countplot(x = 'Result', hue = gpd_crime_vs['Incident Day of Week'], data = gpd_crime_vs,ax=axss[1][1])
sns.countplot(x = 'Result', hue = gpd_crime_vs['Incident Subcategory'], data = gpd_crime_vs,ax=axss[1][2])
<Axes: xlabel='Result', ylabel='count'>

Code

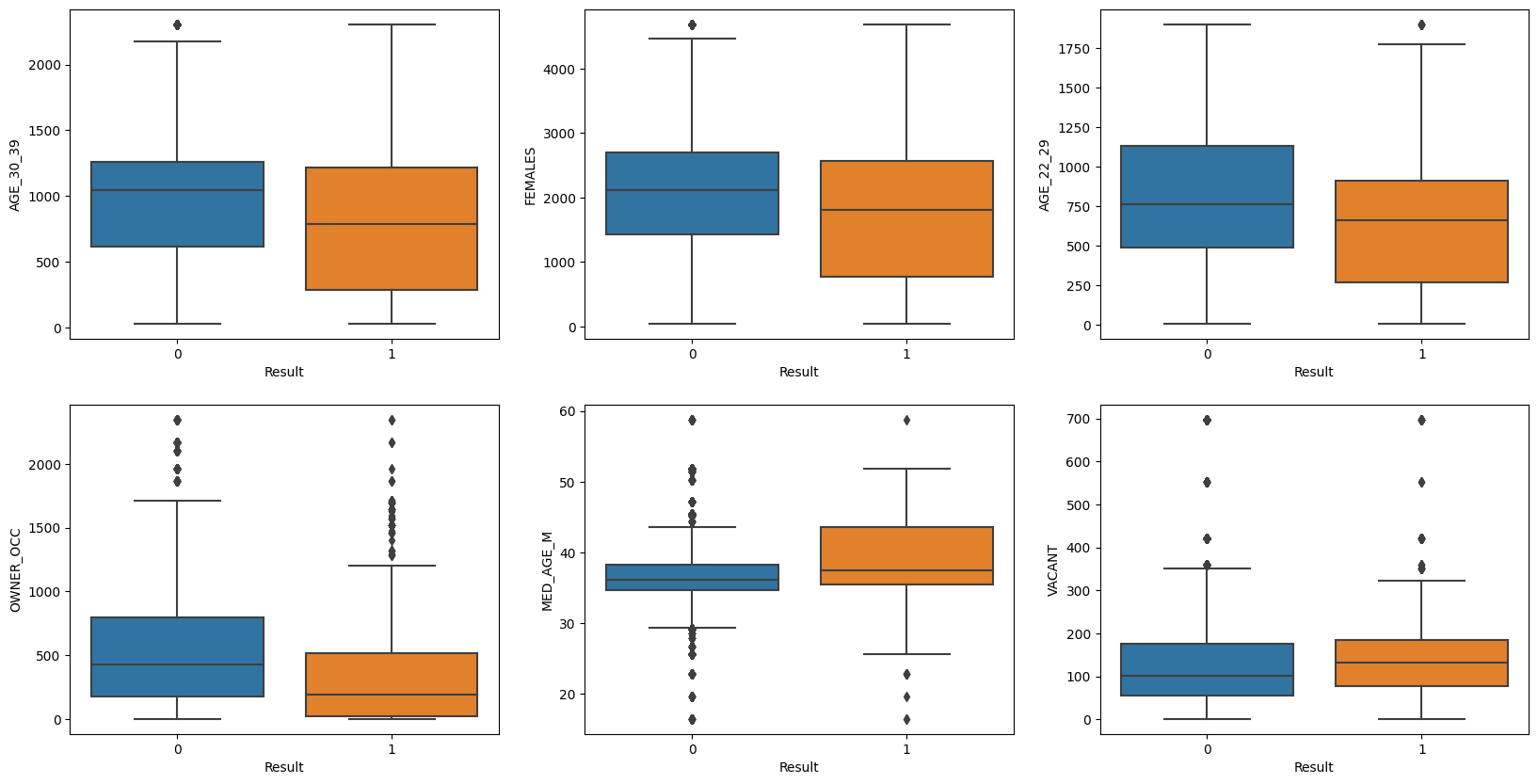

_,axss = plt.subplots(2,3, figsize = [20,10])
sns.boxplot(x='Result',y='AGE_30_39',data=gpd_crime_vs,ax=axss[0][0])
sns.boxplot(x='Result',y='FEMALES',data=gpd_crime_vs,ax=axss[0][1])
sns.boxplot(x='Result',y='AGE_22_29',data=gpd_crime_vs,ax=axss[0][2])
sns.boxplot(x='Result',y='OWNER_OCC',data=gpd_crime_vs,ax=axss[1][0])
sns.boxplot(x='Result',y='MED_AGE_M',data=gpd_crime_vs,ax=axss[1][1])
sns.boxplot(x='Result',y='VACANT',data=gpd_crime_vs,ax=axss[1][2])
<Axes: xlabel='Result', ylabel='VACANT'>

Code

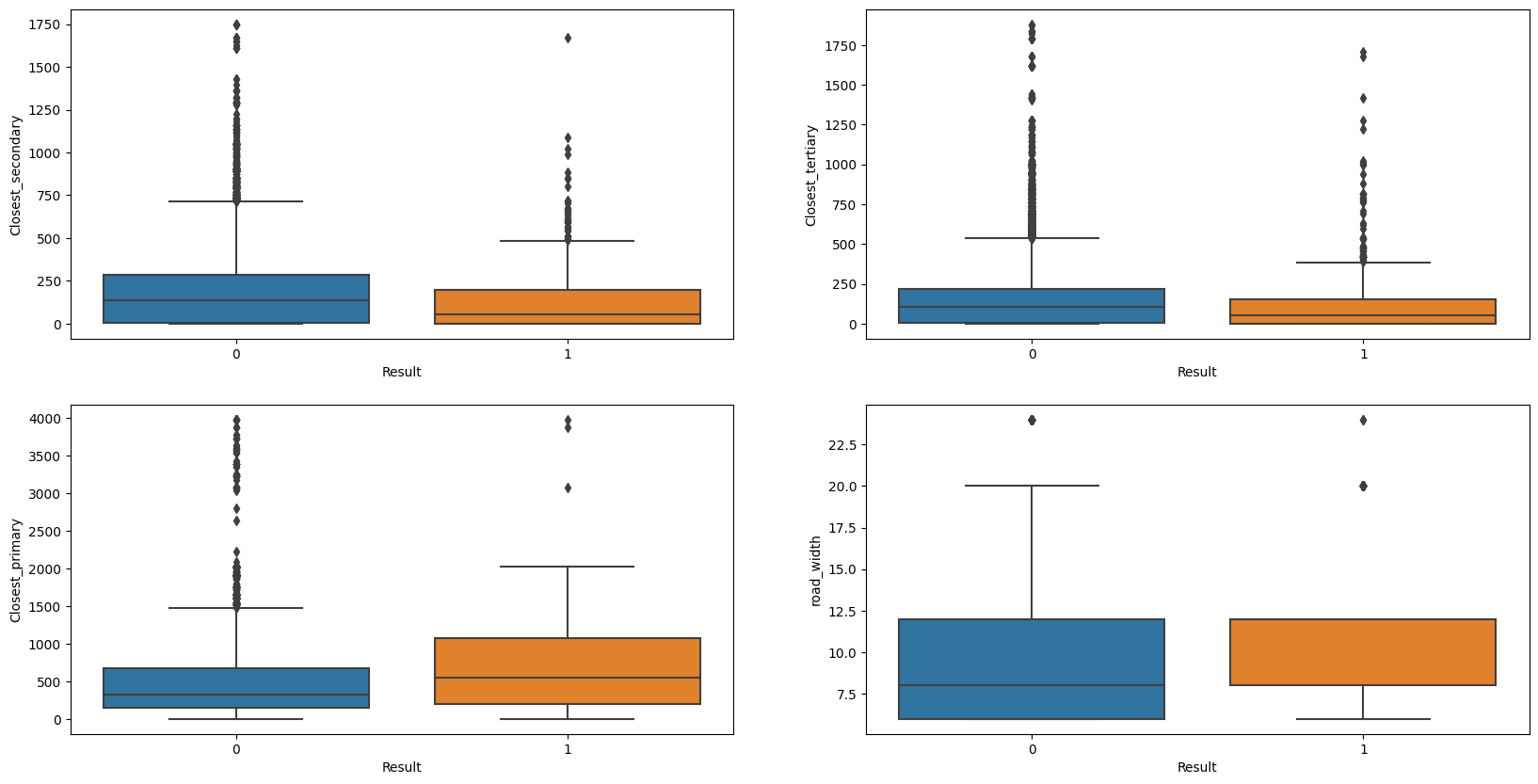

_,axss = plt.subplots(2,2, figsize = [20,10])
sns.boxplot(x='Result',y='Closest_secondary',data=gpd_crime_vs,ax=axss[0][0])
sns.boxplot(x='Result',y='Closest_tertiary',data=gpd_crime_vs,ax=axss[0][1])
sns.boxplot(x='Result',y='Closest_primary',data=gpd_crime_vs,ax=axss[1][0])
sns.boxplot(x='Result',y='road_width',data=gpd_crime_vs,ax=axss[1][1])
<Axes: xlabel='Result', ylabel='road_width'>

Code
dropy = ['Incident Time','Incident Year','Incident Day of Week','Report Type Code','Incident Category','Incident Subcategory','Resolution','Intersection','Police District','Analysis Neighborhood',
        'Supervisor District 2012','Latitude','Longitude','Point','ESNCAG - Boundary File','geometry','year','minute','place_id','osm_type','osm_id','lat','lon','display_name',
        'class','type','Crime_Location','the_geom_left','districtname','gen','index_right','the_geom_right','OBJECTID','FIPSSTCO','TRT2000','STFID','TRACTID','STATE','COUNTY',
        'TRACT']
crime_md = gpd_crime_fnl.drop(dropy, axis = 1)
Code
crime_md.dtypes
Neighborhoods        float64
month                  int64
day                    int64
hour                   int64
Result                 int64
importance           float64
Closest_highway      float64
Closest_primary      float64
Closest_secondary    float64
Closest_tertiary     float64
builidng_nn1         float64
road_width             int64
rate_BS              float64
POP2000                int64
WHITE                  int64
BLACK                  int64
AMERI_ES               int64
ASIAN                  int64
HAWN_PI                int64
OTHER                  int64
MULT_RACE              int64
HISPANIC               int64
MALES                  int64
FEMALES                int64
AGE_UNDER5             int64
AGE_5_17               int64
AGE_18_21              int64
AGE_22_29              int64
AGE_30_39              int64
AGE_40_49              int64
AGE_50_64              int64
AGE_65_UP              int64
MED_AGE              float64
MED_AGE_M            float64
MED_AGE_F            float64
HOUSEHOLDS             int64
AVE_HH_SZ            float64
HSEHLD_1_M             int64
HSEHLD_1_F             int64
MARHH_CHD              int64
MARHH_NO_C             int64
MHH_CHILD              int64
FHH_CHILD              int64
FAMILIES               int64
AVE_FAM_SZ           float64
HSE_UNITS              int64
URBAN                  int64
RURAL                  int64
VACANT                 int64
OWNER_OCC              int64
RENTER_OCC             int64
rtype                  int64
ztype                  int64
dtype: object

Model Construction

Code
crime_md.fillna(0, inplace=True)
Code
X = crime_md.drop(['Result'],axis = 1)
y = crime_md['Result']
Code
from sklearn import model_selection as mdslct
X_train, X_test, y_train, y_test = mdslct.train_test_split(X, y, test_size = 0.25, stratify= y, random_state= 1)

print('training data has ' + str(X_train.shape[0]) + ' observation with ' + str(X_train.shape[1]) + ' features')
print('test data has ' + str(X_test.shape[0]) + ' observation with ' + str(X_test.shape[1]) + ' features')
training data has 21165 observation with 52 features
test data has 7055 observation with 52 features
Code
from sklearn.preprocessing import StandardScaler
scale = StandardScaler()
scale.fit(X_train)
X_train = scale.transform(X_train)
X_test = scale.transform(X_test)
Code
from sklearn.ensemble import RandomForestClassifier
from sklearn.neighbors import KNeighborsClassifier
from sklearn.linear_model import LogisticRegression

classifier_rd = RandomForestClassifier()
classifier_KNN = KNeighborsClassifier()
classifier_lr = LogisticRegression()
Code
classifier_rd.fit(X_train,y_train)
classifier_rd.predict(X_test)
classifier_rd.score(X_test,y_test)
Code
classifier_KNN.fit(X_train,y_train)
classifier_KNN.predict(X_test)
classifier_KNN.score(X_test,y_test)
Code
classifier_lr.fit(X_train,y_train,sample_weight=1)
classifier_lr.predict(X_test)
classifier_lr.score(X_test,y_test)
Code
from sklearn.model_selection import GridSearchCV
def print_grid_search_metrics(gs):
  print("best_score =" + str(gs.best_score_))
  print('best_parameter set:')
  best_parameter = gs.best_params_
  for param_name in sorted(best_parameter.keys()):
    print(param_name + ':' + str(best_parameter[param_name]))
Code
#to find the optimal hyperparamater
#penalty is the way of regularization, C is the weight for penalty
parameters = {
    'penalty':('l2','l1'),
    'C':(0.01, 0.05, 0.1, 0.2, 1,1.1,1.2)
}
Grid_LR = GridSearchCV(LogisticRegression(solver='liblinear'),parameters, cv=5)
Grid_LR.fit(X_train, y_train)
GridSearchCV(cv=5, estimator=LogisticRegression(solver='liblinear'),
             param_grid={'C': (0.01, 0.05, 0.1, 0.2, 1, 1.1, 1.2),
                         'penalty': ('l2', 'l1')})
In a Jupyter environment, please rerun this cell to show the HTML representation or trust the notebook.
On GitHub, the HTML representation is unable to render, please try loading this page with nbviewer.org.
Code
print(print_grid_search_metrics(Grid_LR))
best_score =0.9539333805811481
best_parameter set:
C:0.01
penalty:l2
None
Code
best_LR_model = Grid_LR.best_estimator_
Code
best_LR_model.predict(X_test)
array([0, 0, 0, ..., 0, 0, 0])
Code
best_LR_model.score(X_test,y_test)
0.9539333805811481
Code
# optimal hyperparameter for KNN
parameters = {
    'n_neighbors':[1,3,5,7]
} #the name of parameters should match that in KNN
Grid_KNN = GridSearchCV(KNeighborsClassifier(),parameters,cv=5)
Grid_KNN.fit(X_train, y_train)
GridSearchCV(cv=5, estimator=KNeighborsClassifier(),
             param_grid={'n_neighbors': [1, 3, 5, 7]})
In a Jupyter environment, please rerun this cell to show the HTML representation or trust the notebook.
On GitHub, the HTML representation is unable to render, please try loading this page with nbviewer.org.
Code
print(print_grid_search_metrics(Grid_KNN))
best_score =0.9526104417670682
best_parameter set:
n_neighbors:7
None
Code
best_KNN_model = Grid_KNN.best_estimator_
Code
best_KNN_model.predict(X_test)
array([0, 0, 0, ..., 0, 0, 0])
Code
best_KNN_model.score(X_test,y_test)
0.9523742026931254
Code
# optimal hyperparameter for Random Forest
parameters = {
    'n_estimators' : [50,60,80,100],
    'max_depth': [1,5,8,10]
}
Grid_RM = GridSearchCV(RandomForestClassifier(),parameters,cv=5)
Grid_RM.fit(X_train,y_train)
GridSearchCV(cv=5, estimator=RandomForestClassifier(),
             param_grid={'max_depth': [1, 5, 8, 10],
                         'n_estimators': [50, 60, 80, 100]})
In a Jupyter environment, please rerun this cell to show the HTML representation or trust the notebook.
On GitHub, the HTML representation is unable to render, please try loading this page with nbviewer.org.
Code
print(print_grid_search_metrics(Grid_RM))
best_score =0.9581384360973304
best_parameter set:
max_depth:10
n_estimators:80
None
Code
best_RM_model = Grid_RM.best_estimator_
Code
best_RM_model.predict(X_test)
array([0, 0, 0, ..., 0, 0, 0])
Code
best_RM_model.score(X_test,y_test)
0.9587526576895818
Code
from sklearn.metrics import confusion_matrix
from sklearn.metrics import classification_report
from sklearn.metrics import precision_score
from sklearn.metrics import recall_score

# calculate accuracy, precision and recall, [[tn, fp],[]]
def cal_evaluation(classifier, cm):
    tn = cm[0][0]
    fp = cm[0][1]
    fn = cm[1][0]
    tp = cm[1][1]
    accuracy = (tp+ tn)/(tp + tn + fp + fn + 0.0)
    precision = tp/(tp + fp + 0.0)
    recall = tp/(tp + fn + 0.0)
    print (classifier)
    print ("Accuracy is: " + str(accuracy))
    print ("precision is: " + str(precision))
    print ("recall is: " + str(recall))
    print ()

# print out confusion matrices
def draw_confusion_matrices(confusion_matricies):
    class_names = ['Not','Churn']
    for cm in confusion_matrices:
        classifier, cm = cm[0], cm[1]
        cal_evaluation(classifier, cm)
Code
confusion_matrices = [
    ("Random Forest", confusion_matrix(y_test,best_RM_model.predict(X_test))),
    ("Logistic Regression", confusion_matrix(y_test,best_LR_model.predict(X_test))),
    ("K nearest neighbor", confusion_matrix(y_test, best_KNN_model.predict(X_test)))
]

draw_confusion_matrices(confusion_matrices)
Random Forest
Accuracy is: 0.9587526576895818
precision is: 0.7931034482758621
recall is: 0.14153846153846153

Logistic Regression
Accuracy is: 0.9539333805811481
precision is: nan
recall is: 0.0

K nearest neighbor
Accuracy is: 0.9523742026931254
precision is: 0.44554455445544555
recall is: 0.13846153846153847
RuntimeWarning: invalid value encountered in true_divide
  precision = tp/(tp + fp + 0.0)
Code
from sklearn.metrics import roc_curve
from sklearn import metrics
#ROC for Random Forest
y_pred_rm = best_RM_model.predict_proba(X_test)[:, 1]
fpr_rf, tpr_rf, _ = roc_curve(y_test, y_pred_rm)
Code
best_RM_model.predict_proba(X_test)
array([[0.9804783 , 0.0195217 ],
       [0.96240263, 0.03759737],
       [0.98051001, 0.01948999],
       ...,
       [0.93483543, 0.06516457],
       [0.97694558, 0.02305442],
       [0.97324386, 0.02675614]])
Code
# ROC curve of Random Forest result
import matplotlib.pyplot as plt
plt.figure(1)
plt.plot([0, 1], [0, 1], 'k--')
plt.plot(fpr_rf, tpr_rf, label='RF')
plt.xlabel('False positive rate')
plt.ylabel('True positive rate')
plt.title('ROC curve - RF model')
plt.legend(loc='best')
plt.show()

Code
from sklearn import metrics

# AUC score
metrics.auc(fpr_rf,tpr_rf)
0.7818637558578123
Code
#ROC for Logistic Regression
y_pred_lr = best_LR_model.predict_proba(X_test)[:, 1]
fpr_rf, tpr_rf, _ = roc_curve(y_test, y_pred_lr)
Code
best_LR_model.predict_proba(X_test)
array([[0.96862073, 0.03137927],
       [0.96606054, 0.03393946],
       [0.95716253, 0.04283747],
       ...,
       [0.94351064, 0.05648936],
       [0.92430863, 0.07569137],
       [0.92842141, 0.07157859]])
Code
plt.figure(1)
plt.plot([0, 1], [0, 1], 'k--')
plt.plot(fpr_rf, tpr_rf, label='RF')
plt.xlabel('False positive rate')
plt.ylabel('True positive rate')
plt.title('ROC curve - LR model')
plt.legend(loc='best')
plt.show()

Code
metrics.auc(fpr_rf,tpr_rf)
0.7121924791404731
Code
x_corr = X.copy()
scaler = StandardScaler()
X_L1 = scaler.fit_transform(x_corr)
LRmodel_l1 = LogisticRegression(penalty="l1", C = 0.04, solver='liblinear')
LRmodel_l1.fit(X_L1,y)

indices = np.argsort(abs(LRmodel_l1.coef_[0]))[::-1]

print ("Logistic Regression (L1) Coefficients")
for ind in range(x_corr.shape[1]):
  print ("{0} : {1}".format(x_corr.columns[indices[ind]],round(LRmodel_l1.coef_[0][indices[ind]], 4)))
Logistic Regression (L1) Coefficients
MED_AGE_M : 0.3342
WHITE : -0.2047
Closest_secondary : -0.2016
Closest_primary : 0.1925
Closest_tertiary : -0.1874
rate_BS : -0.1429
ztype : 0.123
HAWN_PI : 0.1183
AGE_18_21 : 0.1173
OTHER : 0.1098
VACANT : 0.1073
ASIAN : 0.0678
AGE_65_UP : -0.0657
month : -0.0526
hour : -0.0477
OWNER_OCC : -0.0447
HSEHLD_1_F : -0.0366
Neighborhoods : -0.0362
MULT_RACE : -0.0351
HSEHLD_1_M : -0.0249
Closest_highway : 0.0211
rtype : 0.0193
BLACK : -0.0161
RENTER_OCC : 0.0
importance : 0.0
builidng_nn1 : 0.0
road_width : 0.0
RURAL : 0.0
POP2000 : 0.0
URBAN : 0.0
AMERI_ES : 0.0
day : 0.0
HSE_UNITS : 0.0
FAMILIES : 0.0
HISPANIC : 0.0
FHH_CHILD : 0.0
MHH_CHILD : 0.0
MARHH_NO_C : 0.0
MARHH_CHD : 0.0
AVE_HH_SZ : 0.0
HOUSEHOLDS : 0.0
MED_AGE_F : 0.0
AVE_FAM_SZ : 0.0
MED_AGE : 0.0
AGE_50_64 : 0.0
AGE_40_49 : 0.0
AGE_30_39 : 0.0
AGE_22_29 : 0.0
AGE_5_17 : 0.0
AGE_UNDER5 : 0.0
FEMALES : 0.0
MALES : 0.0
Code
scaler = StandardScaler()
X_L2 = scaler.fit_transform(x_corr)
LRmodel_l2 = LogisticRegression(penalty="l2", C = 0.04, solver='liblinear')
LRmodel_l2.fit(X_L2,y)

indices = np.argsort(abs(LRmodel_l2.coef_[0]))[::-1]

print ("Logistic Regression (L2) Coefficients")
for ind in range(x_corr.shape[1]):
  print ("{0} : {1}".format(x_corr.columns[indices[ind]],round(LRmodel_l2.coef_[0][indices[ind]], 4)))
Logistic Regression (L2) Coefficients
MED_AGE_M : 0.3263
HSEHLD_1_M : -0.2878
WHITE : -0.2381
AGE_5_17 : -0.2108
rate_BS : -0.2069
Closest_secondary : -0.2057
ASIAN : 0.196
MARHH_NO_C : 0.1924
Closest_primary : 0.1819
HAWN_PI : 0.1792
Closest_tertiary : -0.1763
AVE_HH_SZ : -0.1724
VACANT : 0.1557
AVE_FAM_SZ : 0.1522
AGE_65_UP : -0.1417
OTHER : 0.1396
MARHH_CHD : -0.1302
AGE_UNDER5 : 0.1262
AGE_18_21 : 0.1249
MULT_RACE : -0.1247
HISPANIC : 0.121
ztype : 0.1203
AGE_40_49 : 0.1187
MHH_CHILD : -0.1183
HSEHLD_1_F : -0.1088
AMERI_ES : 0.0906
AGE_50_64 : -0.0891
Closest_highway : 0.0882
road_width : -0.0823
MED_AGE : 0.0727
hour : -0.0718
MED_AGE_F : -0.067
month : -0.0657
HSE_UNITS : 0.0609
RENTER_OCC : 0.059
Neighborhoods : -0.0553
FHH_CHILD : 0.0535
HOUSEHOLDS : 0.0487
rtype : 0.0418
AGE_22_29 : 0.0297
AGE_30_39 : 0.0292
MALES : -0.0243
POP2000 : -0.0209
OWNER_OCC : -0.0185
FEMALES : -0.0151
BLACK : 0.015
FAMILIES : -0.0093
day : -0.0067
builidng_nn1 : -0.0
URBAN : 0.0
RURAL : 0.0
importance : 0.0
Code
# check feature importance of random forest for feature selection
forest = RandomForestClassifier()
forest.fit(x_corr, y)

importances = forest.feature_importances_

indices = np.argsort(importances)[::-1]

# Print the feature ranking
print("Feature importance ranking by Random Forest Model:")
for ind in range(X.shape[1]):
  print ("{0} : {1}".format(x_corr.columns[indices[ind]],round(importances[indices[ind]], 4)))
Feature importance ranking by Random Forest Model:
day : 0.221
hour : 0.2031
month : 0.1718
Closest_primary : 0.0668
Closest_tertiary : 0.0593
Closest_secondary : 0.0564
Closest_highway : 0.0555
Neighborhoods : 0.0167
ztype : 0.0133
MED_AGE : 0.0076
rate_BS : 0.0076
road_width : 0.0074
MED_AGE_M : 0.0072
rtype : 0.0066
OWNER_OCC : 0.0053
VACANT : 0.0042
MULT_RACE : 0.004
ASIAN : 0.0037
MED_AGE_F : 0.0036
FEMALES : 0.0036
AGE_22_29 : 0.0036
AMERI_ES : 0.0035
AGE_40_49 : 0.0032
HSEHLD_1_M : 0.0031
MALES : 0.0031
POP2000 : 0.003
HISPANIC : 0.003
AGE_UNDER5 : 0.0029
HSEHLD_1_F : 0.0029
FAMILIES : 0.0029
BLACK : 0.0028
RENTER_OCC : 0.0028
HSE_UNITS : 0.0028
MARHH_NO_C : 0.0027
AGE_18_21 : 0.0026
HOUSEHOLDS : 0.0026
AGE_65_UP : 0.0026
AGE_50_64 : 0.0026
WHITE : 0.0025
OTHER : 0.0025
MARHH_CHD : 0.0025
AGE_5_17 : 0.0025
FHH_CHILD : 0.0024
AGE_30_39 : 0.0024
MHH_CHILD : 0.0023
AVE_HH_SZ : 0.0021
HAWN_PI : 0.0021
AVE_FAM_SZ : 0.0017
builidng_nn1 : 0.0
URBAN : 0.0
RURAL : 0.0
importance : 0.0
